HEAVY DUTY CASTERS

Series 40-A-MH /41-A-MH, 470 to 2500 lbs weight capacity

Series 40-A-MH-W / 40-A-MH-W, 840 to 2500 lbs. weight capacity

Series 82-A / 83-A "Mity-Mite", 3-4" diameter wheels, 1500 lbs weight capacity

Series 40-A-MH / Series 41- A-MH

Heavy Duty Service

The large double ball race construction and heavy duty gauge steel provide in the 40-A-MH the rugged running gear for heavy duty manual and medium duty power drawn operations.  Available wheel selection meets most industrial or commercial floor requirements.

Features

Construction:  Heavy gauge steel is cold-forged to provide strong, rigid top plate and cup assembly.

Swivel Bearing: Hardened and polished steel balls in coined and hardened upper raceways assure easy swivel action and long service life. Swivel design provides maximum protection for the king bolt.

Fork: Wide, deep formed legs are continuously welded to the cup for maximum strength and rigidity.

King Bolt: Heavy duty steel bolt with crown nut and cotter pin.

Axle: Threaded axle bolt with square head that fits against lug on fork preventing it from turning.  Axle is secured with crown nut and cotter pin.

Wheels: A full selection of industrial type wheels in either 2-1/2” or 3” face width is available.

Wheel Bearings: All wheels are available with either straight or tapered roller bearings.  Straight roller bearings consist of a split outer raceway with high quality hardened steel rollers held parallel to the axle by a steel retainer.  A hardened and ground sleeve provides a precision inner raceway.  Two precision tapered roller bearings per wheel mount directly on the axle.

Lubrication:  Readily accessible pressure fittings to swivel assembly and to either wheel hub or axle.

Finish: Durable corrosion resistant finish.

RIGID CASTER:  The 41-A-MH is made of heavy steel sections, deep formed and welded to match the strength and rigidity of the matching 40-A-MH.  Bolt hole spacing and overall height are the same.

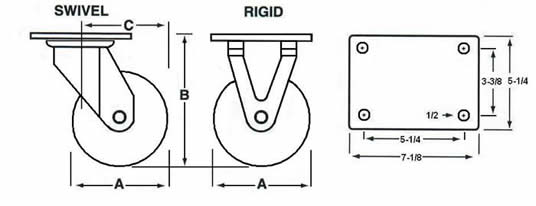

TOP PLATE AND MOUNTING SPECIFICATIONS in inches

Mounting Plate Configuration	Double Ball Raceway

   Series 40-A-MH/41-A-MH

                       The load capacity is rated for manual operation.

     <BACK TO THE TOP>

Contact us with your needs:
Telephone:  800-233-2663 or email: sales@bondcaster.com

   40-A-MH-W/41-A-MH-W – With 3 inch tread width

                       The load capacity is rated for manual operation.

Contact us with your needs:
Telephone:  800-233-2663 or email: sales@bondcaster.com

<BACK TO THE TOP>

Series 82-A / 83-A

Mity-Mite Casters

The "Mity-Mite" is designed specifically for very heavy in-plant service and features high capacity, low height and long life.

Features

Construction: Heavy gauge steel plate, machined and welded to provide the rugged construction needed for heavy factory service where uneven floors, metal chips, etc. might be encountered.

Swivel: Precision bearing units are provided for both load bearing and thrust. Bearing units are replaceable.

King bolt: High strength steel bolt with slotted nut and cotter pin.

Wheel: Semi-steel with roller bearings

Lubrication: Pressure fitting in yoke base serves complete swivel. Wheel is lubricated through hub.

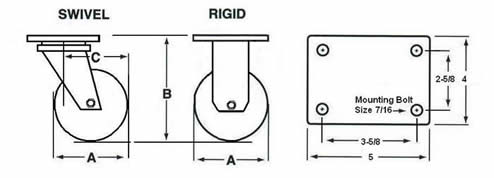

Mounting Plate Configuration	Double Precision Bearings

Mity-Mite Casters - Series 82-A / 83-A
