MATERIAL HANDLING DOLLIES

When you need to move just about anything with posts or even without posts these dollies are real people savers! They are compact triangular shaped dollies with a cup center; often called cup dollies or cup casters. One dolly is placed under each post or leg of the article you intend to move; once all posts have dollies you simply roll your article through doorways, onto elevators, down the street, into the truck, or across the room! The swivel wheels and tripod wheel arrangement allow the article to be moved in any direction; even top heavy articles go where you want them too safely and securely.

MODEL 2127

MEDIUM DUTY CUP DOLLY

CONSTRUCTION WEIGHT: 8-1/2 lbs.

BODY:	Cast semi-steel with 2” deep well, measuring 5” at
	the top and 3-3/16” at the bottom.
	Clearance is 5/8” from the floor.

WHEELS:	Must be specified when ordering. The 2” diameter
	wheels are chosen based on the weight carried and the
	environmental needs.

MODEL 2127
WHEEL MATERIAL CHOICES	Capacity (lbs.)/ dolly
Hard tread, black solid rubber	375
Soft tread, black solid rubber	225
Semi-steel	450
Bondrelene – black plastic	270
TuffBond – white plastic (shown above)	450

Note: Dolly Carry Case is available that holds 4 Model 2127 dollies

in cast iron or aluminum.

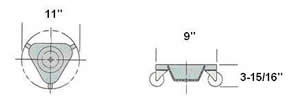

MODEL 2127 AL

ALUMINUM BASE, WIDE WHEEL CUP DOLLY

CONSTRUCTION WEIGHT: 4-3/4 lbs.

BODY:	Cast aluminum with 2” deep well, measuring 5” at the
	top and 3-3/16” at the bottom
	Clearance is 1-9/16” from the floor.

WHEELS:	2” diameter X 1-11/16” face hard black plastic wheels.

WEIGHT CAPACITY: 600 lbs.

Note: Dolly Carry Case is available that holds 4 Model 2127 dollies

in cast iron or aluminum.

Contact us with your needs:
Telephone: 800-233-2663 or email: sales@bondcaster.com
